MDL NO.:ER-B09

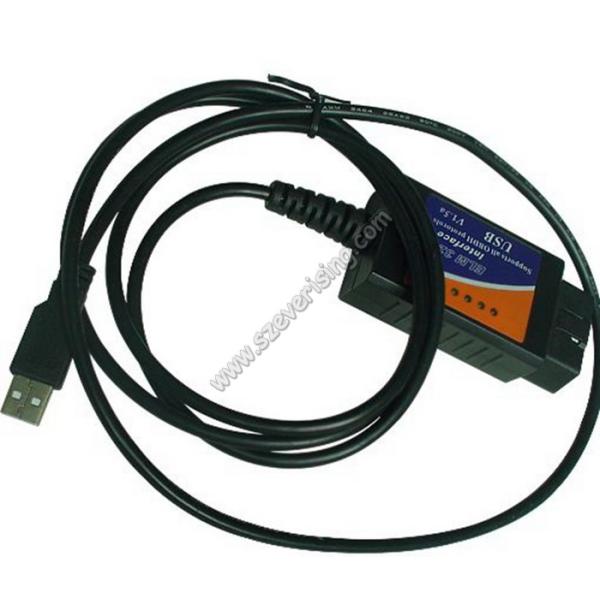

Mini USB Car OBD code reader mini Elm327 Reader Auto Car Diagnostic
Interface Scanner
Mini USB OBD2 scanner mini Elm327 Reader Auto Car Diagnostic
Interface Scanner
1) OBD 2 Software for ELM327 USB is a free program that allows you
to use your PC and a hardware interface to get the information from
your car's computer.
2) The program is very user-friendly, and easy to learn. It is also
very easy to install: simply extract the files into a folder on
your computer's hard drive,
and you're ready to go. To uninstall the program, simply delete the
entire contents of the folder where the program resides.
3) The software supports two platforms - DOS and Windows.
4) The program lets you perform the following operations:
5) Read diagnostic trouble codes, both generic and
manufacturer-specific, and display their meaning (over 3000 generic
code definitions in the database).
6) Clear trouble codes and turn off the MIL ("Check Engine" light)
7) Display current sensor data, including:
Engine RPM
Calculated Load ＆#118alue
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Support OBDII Protocols:
V2.1 | V1.5 |
1.ISO9141-2(5 baud init,10.4Kbaud)
2.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
3.ISO14230-4 KWP(fast init,10.4 Kbaud)
4.ISO15765-4 CAN(11bit ID,500 Kbaud)
5.ISO15765-4 CAN(29bit ID,500 Kbaud)
6.ISO15765-4 CAN(11bit ID,250 Kbaud)
7.ISO15765-4 CAN(29bit ID,250 Kbaud) | 1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud) |
